AWS Single Account (SA) Setup

CloudShare’s AWS single account setup enables you to run all of your training, demos, and POCs through a single account with your own licenses.

This article includes the following:

• Basic customer setup guide
  • Option #1 - Access Key
  • Option #2 - IAM role (Preferred)
• Setup guide for AMIs/CMKs

Basic Customer Setup

Option #1 - Access Key

1. In AWS, copy the AWS account ID for the account you want CloudShare to use.

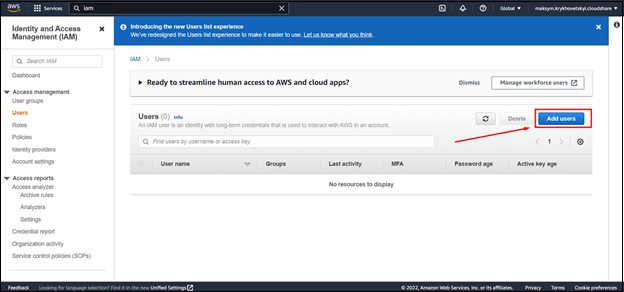

2. To create an IAM user for CloudShare, go to IAM → Users → Add users.

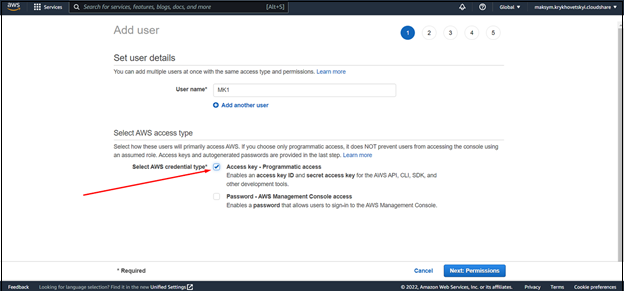

3. Enter your username and select the Access key – Programmatic access credential type.




4. Select Attach existing policies directly and create a “GeneralAssumeRolePolicy” policy with JSON.



   {    "Version": "2012-10-17",    "Statement": [ {            "Sid": "VisualEditor0",            "Effect": "Allow",            "Action": "sts:AssumeRole",            "Resource": "*" } ] }





5. Attach the “GeneralAssumeRolePolicy” and “AmazonEC2FullAccess” policies to the user.




6. To use AWS SA with service principle credentials, skip the next steps, create a user, and copy the Access key ID and Secret access key.



   Required Data for CloudShare:
   Provide CloudShare with the AWS Account ID and the Access Key ID and Secret Access you created during the previous steps.

Option #2 - IAM role (Preferred)

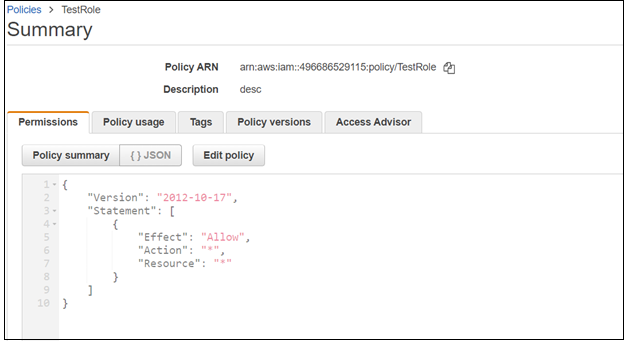

To use AWS SA with access role create role and policy, give the permissions to the resources that you want to read/write/delete in the AWS SA flow. Contact CloudShare Support <support@cloudshare.com> for CloudShare’s AWS account ID. Then set this AWS account ID as a trusted account in the Trust relationships tab.


Required Data for CloudShare:
Provide CloudShare with the AWS Account ID and the IAM role name

Note

• • Using resources from other AWS accounts: If you require using AMIs/CMKs that are hosted on other AWS accounts, you can request the additional guide covering those topics.

Setup Guide for AMIs/CMKs

To use existing functionality for AMIs and CMKs that are stored in different accounts/organizations, follow the steps below (for accounts where AMIs and CMKs are stored).

CMKs

1. Go to Key Management Service (KMS) → Customer managed keys, and select a region.

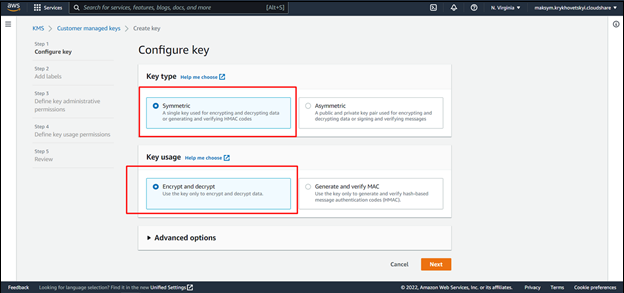

2. Create a key with:
   • Key type - Symmetric
   • Key usage - Encrypt and decrypt

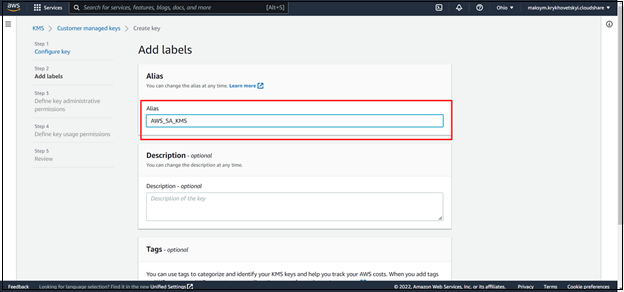

3. Enter the AWS_SA_KMS alias name, and create a key.



4. Skip the Define key administrative permissions and Define key usage permissions steps, and finish the key creation.

Policies

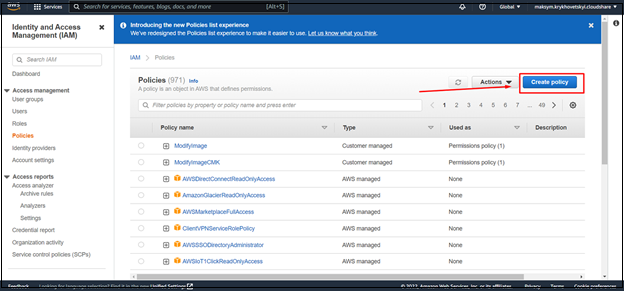

1. Go to IAM → Policies.

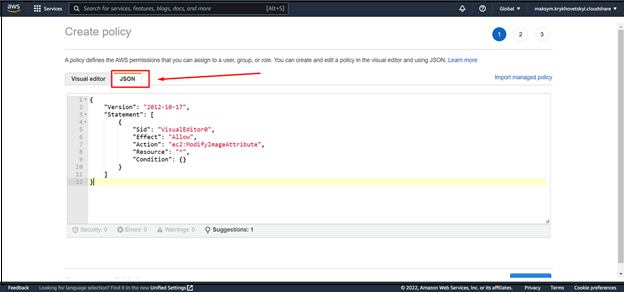

2. Create a policy with JSON, skip the tags step, and name it “ModifyImage”.



   {    "Version": "2012-10-17",    "Statement": [        {            "Sid": "VisualEditor0",            "Effect": "Allow",            "Action": "ec2:ModifyImageAttribute",            "Resource": "*",            "Condition": {}        } ] }














3. Create a ModifyImageCMK policy with JSON (edit the JSON resource with your values "arn:aws:kms:{your-region}:{account-id}:key/{cmk-key-id}")

{
     "Version": "2012-10-17",
     "Statement": [
     {
       "Sid": "VisualEditor0",
       "Effect": "Allow",
       "Action": [
          "kms:Encrypt",
          "kms:Decrypt",
          "kms:ReEncrypt*",
          "kms:GenerateDataKey*",
          "kms:DescribeKey",
          "kms:PutKeyPolicy",
          "kms:GetKeyPolicy"
       ],
       "Resource":
         "arn:aws:kms:us-east-1:123456789012:key/aaaabbbb-0000-1111-2222-bbbbccccdddd"
     }
  ]
}

Roles

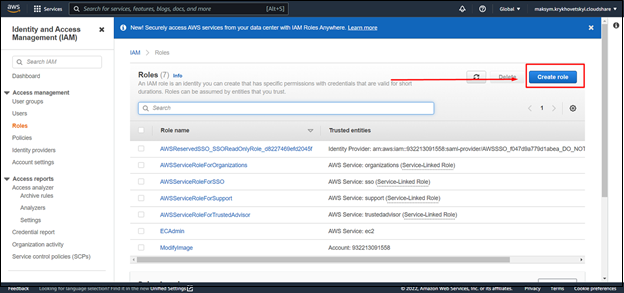

1. Go to IAM → Roles.

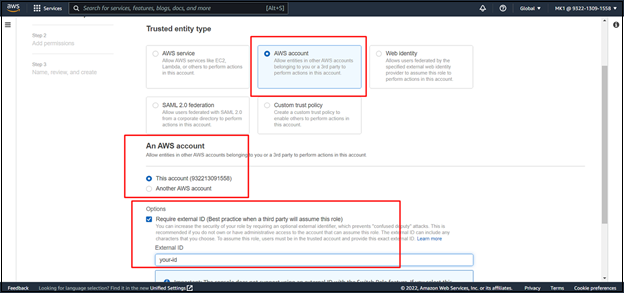

2. Create a role with: Trusted entity type - AWS Account; and An AWS account – the account you will use.
3. Select Require external ID and enter a valid external ID value.

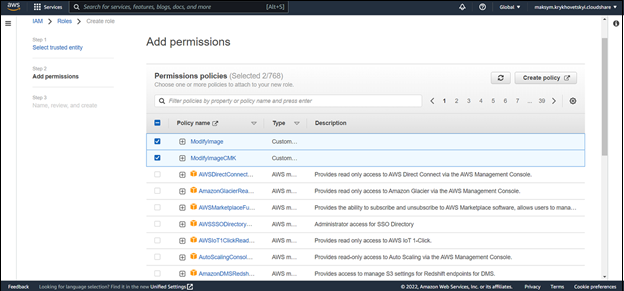

4. Attach ModifyImage and ModifyImageCMK to the role.

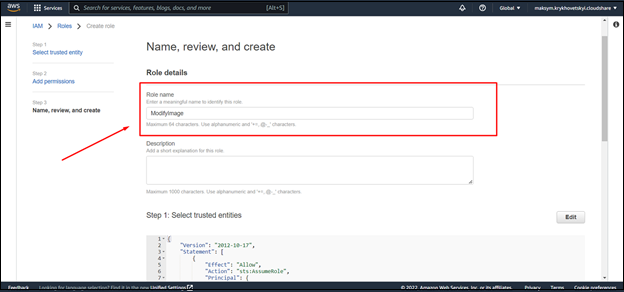

5. Enter the ModifyImage role name and create a role.

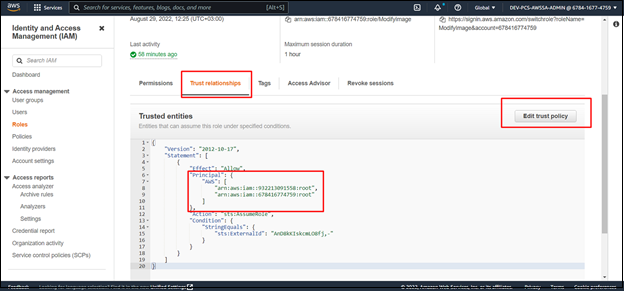

6. If you want to add more trusted accounts, open the ModifyImage role → Trust relationships → Edit trust policy. Then add your accounts into the AWS section.




AMI

1. Create your AMI. For example, EC2 → Instances, and then create an instance.

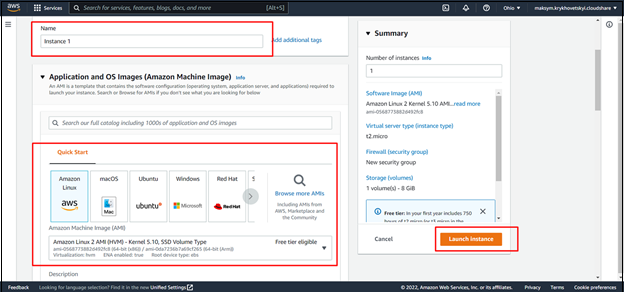

2. Enter the instance name and select the appropriate image.

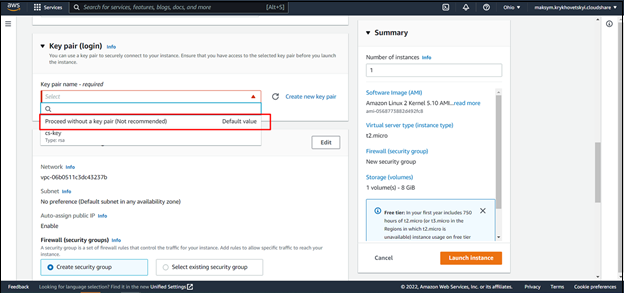

3. In the Key pair section select Proceed without a key pair and launch the instance.

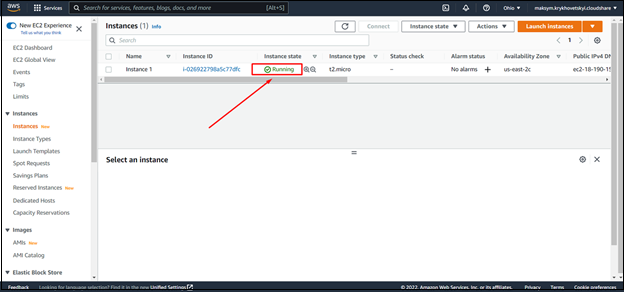

4. Wait for the instance to start.




5. Open an instance, create the AMI, and wait for the creation process to finish.
